KIWISDR: 30 MHZ BANDWIDTH SDR FOR VLF/LF/MF/HF with OpenWebRX

It uses a LTC 14-bit 65 MHz ADC and Xilinx Artix-7 A35 FPGA, and also has an integrated SDR based GPS receiver which is used to automatically compensate for any frequency drift from the main 66.6 MHz oscillator. The features of the KiwiSDR include:

  • 100% Open Source / Open Hardware.
  • Includes VLF-HF active antenna and associated power injector PCBs.
  • Browser-based interface allowing multiple simultaneous user web connections (currently 4).
  • Each connection tunes an independent receiver channel over the entire spectrum.
  • Waterfall tunes independently of audio and includes zooming and panning.
  • Multi-channel, parallel DDC design using bit-width optimized CIC filters.
  • Good performance at VLF/LF since I personally spend time monitoring those frequencies.
  • Automatic frequency calibration via received GPS timing.
  • Easy hardware and software setup. Browser-based configuration interface.

Source: http://www.rtl-sdr.com/kiwisdr-30-mhz-bandwidth-sdr-for-hf/

http://sdr.hu/openwebrx

http://kiwisdr.ece.uvic.ca:8073/

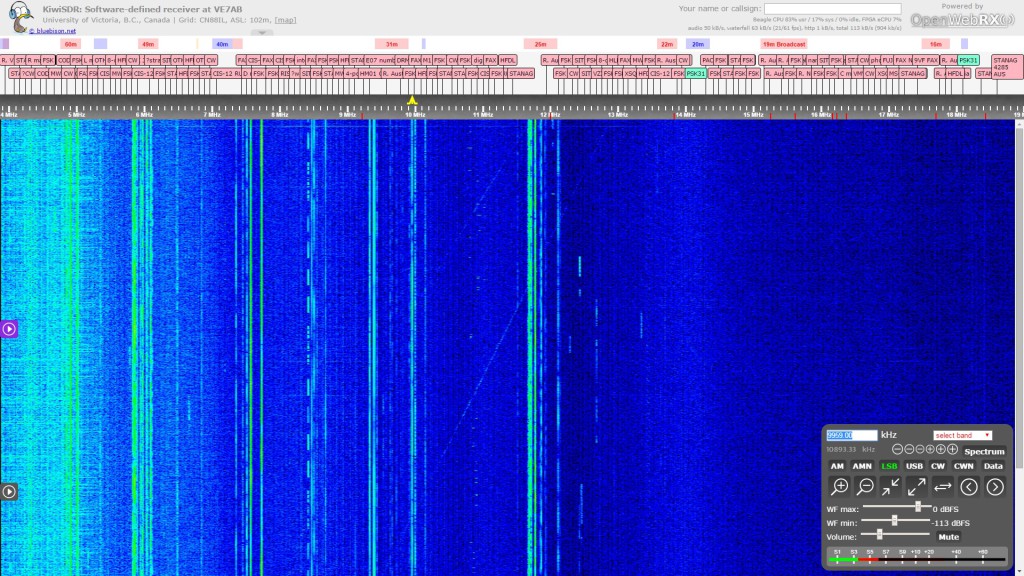

sdr_kiwi
